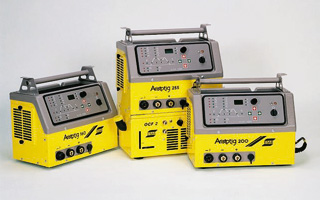

| The Aristotig 160/200/255 DC, that is
based on inverter technology, increases productivity and
quality. The memory will hold up to four sets of welding
parameters. Settings are easy to enter, are very accurate
and can quickly be stored in memory.
Current pulsing in the TIG mode can be set in either micro
pulse or long pulse durations. TIG striking by either LIFTARC™
or HF. The operator can choose manual or automatic arc-force.
Arc-plus function software controls the MMA performance
in a totally new way.
Delivery includes
5 m of mains cable, 2 m of gas hose with 2 hose clamps and
1 OKC cable connector and 5 m of return cable.
| |
LTN 160 |
LTN 200 |
LTN 255 |
| External dimensions, LxWxH, mm |
515 x 285 x 415 |
515 x 285 x 415 |
- |
| Weight, kg |
23 |
23 |
23 |
| Enclosure class, protection |
IP 23 |
IP 23 |
- |
| Mains supply, V/Hz |
230/50-60 |
400/50-60 |
400/50-60 |
| Fuse, slow, A |
16 |
10 |
10 |
| Mains cable, Ø mm2 |
3x2,5 |
4x1,5 |
4x1,5 |
| Max output at 35% duty cycle, A |
160 |
200 |
250 |
| Max output at 60% duty cycle, A |
110 |
150 |
180 |
| Max output at 100% duty cycle, A |
80 |
115 |
140 |
| Active power, P kW |
1.4 |
1.8 |
- |
| Apparent power, S kVA |
2.1 |
3.4 |
- |
| No load power, W |
30 |
50 |
- |
| Open circuit voltage, V |
70 |
70 |
70 |
| Power factor at max current |
0.69 |
0.54 |
- |
| Efficiency at max current |
75 |
76 |
- |
| Current range TIG DC |
3-160 |
3-200 |
3-250 |
| Current range MMA DC |
3-140 |
3-200 |
3-250 |
| Pulse time, s |
0.001-5.0 |
0,001-5,0 |
- |
| Pause time, s |
0.001-5.0 |
0 001-5,0 |
- |
| Slope up, s |
0-10 |
0-10 |
0-10 |
| Slope down, s |
0-10 |
0-10 |
0-10 |
| Gas pre-flow, s |
0-25 |
0-25 |
0-25 |
| Gas post-flow, s |
0-25 |
0-25 |
0-25 |
|
